Adjustable Width Anti-Static PCB Handling Equipment for SMT Production Line 50pcs ESD Rack
Introduction
This PCB Magazine,also called PCB storage rack is used for collecting the PCBs into the PCB loader machine,then loading to the SMT production ine, the magazines are made of volume conductive polypropylene and durable metal, the whole rack is anti-static, and the structure is very stable, which will well protect the PCBs from damage or bent.
Specification
| Overal size | 355*320*565mm,also has other options |
| Suitable PCB size | 50*50~350*250mm |
| PCB storage capacity | Max 50pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 105Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 5kg |
Material Description
1. Upper and lower metal base plate thickness 1.2mm (strong and stable guarantee)
2. Four square aluminium support columns
3. Side plate: anti-static pp injection moulding five consecutive splicing plate
Features
1, This product is used for PCB loader machine, collect the PCBs and transport to the production line.

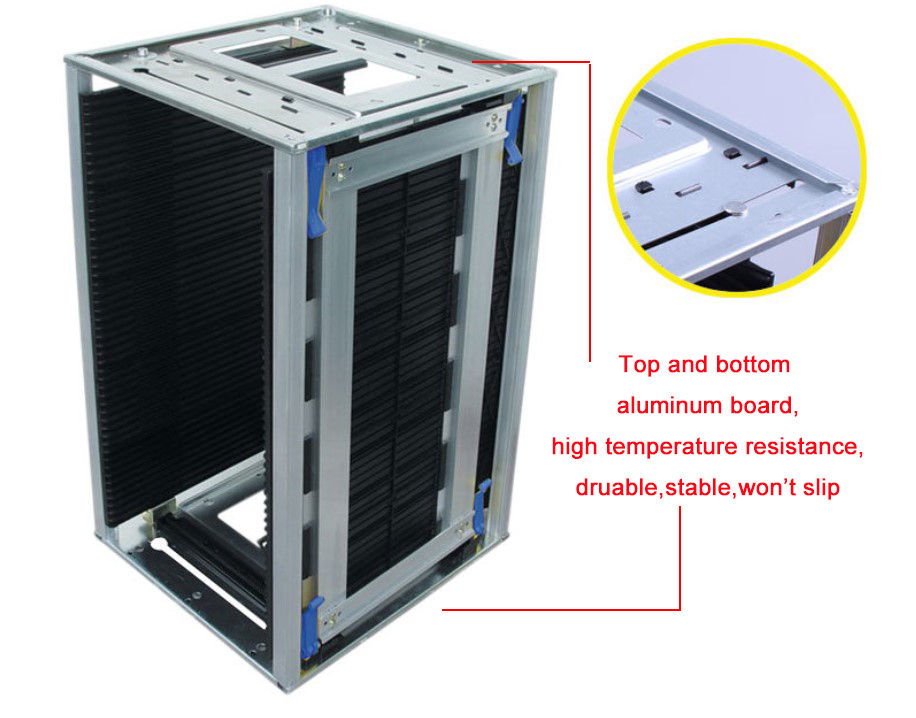

2, Top and bottom part using drable metal material panel, ensure the whole structure stable.

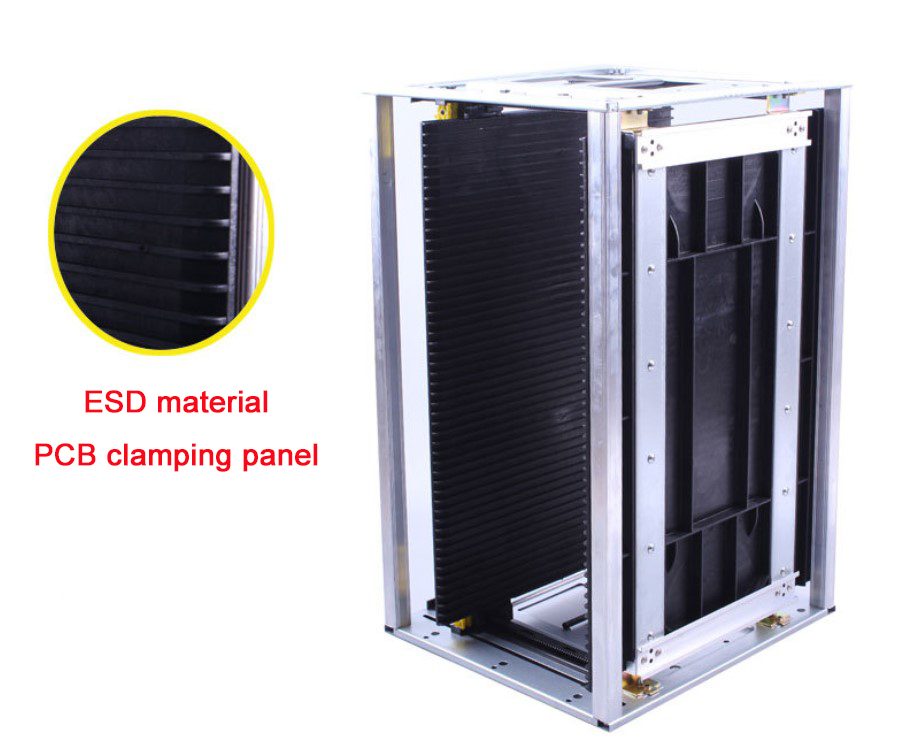

3,, The whold rack is anti-static design, max can store 50pcs PCBs.

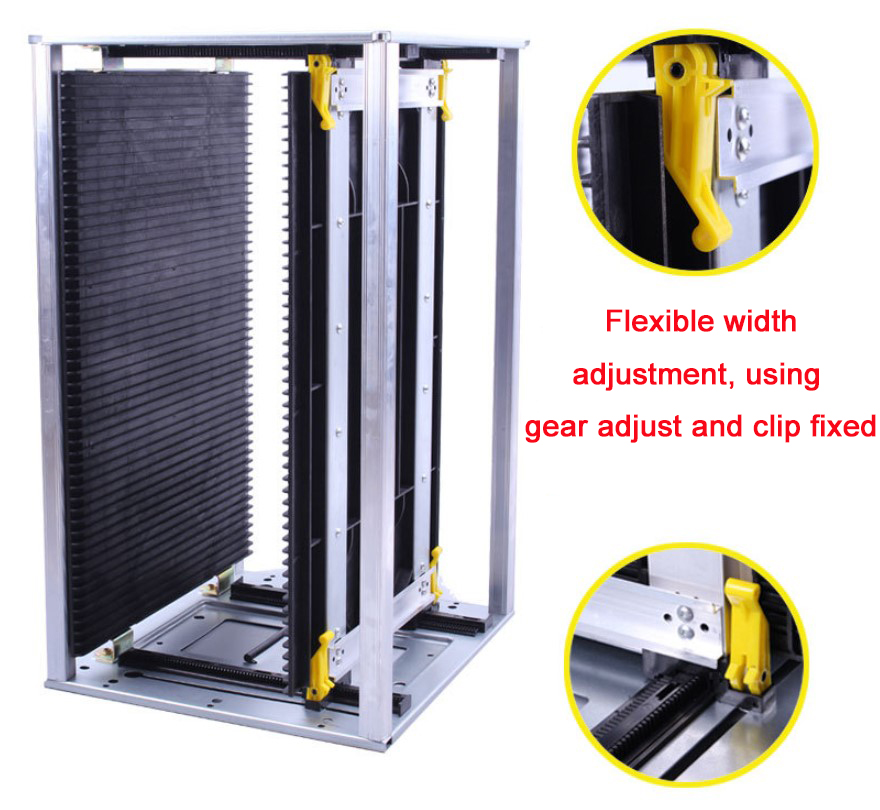

4, Width can be adjusted via gear and fixed by the clip.
5, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.

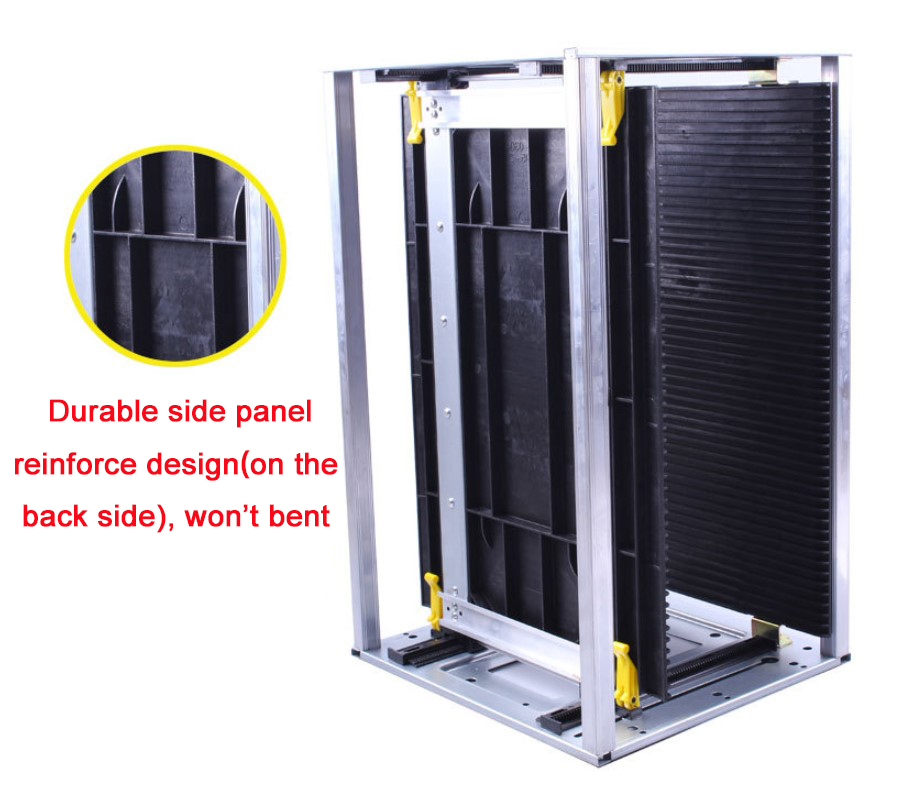

6, Stable structure, wont bent during operation, the racks also high temperature resistance.
7, Easy to install and disassembly, convenient for replacement and maintenance.
