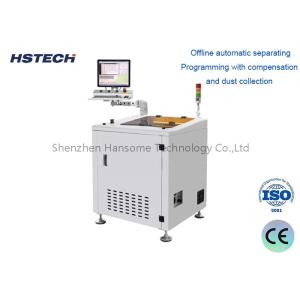

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine
Specification
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual |
| Cutting spindel/speed | 5000~60,000 rpm |
| PCB thickness | 0.4-4mm |
| Separating speed | 1-100mm/s |
| Cutting accuracy | ±0.05mm |
| Fixing type | Fixtures |
| Programing | Visioin teaching, inline programing |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel |
| Dust collection method | Bottom dust collection |
| Dust collector | 3 phase, 380V, 1.2KW |
| Noise | <75dB |
| Control system | Industrial PC |
| Spindle brand | Germany brand, Sycotec 4025 |
| Servo motor | A5 series |
| Motion control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Linear guide | P rank silence guide |
| Camera | Germany brand Imaging 40W industril camera |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen | 17inch |
Features
1, Offline automatic separating.
2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.
3, Customized fixtures.
4, PC and CCD visual system.
5, Programming with compensation and dust collection.
6, Available for max 410-510mm size PCBA.
7, Flexible for cutting two differenct type products.
8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).
We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
|
|

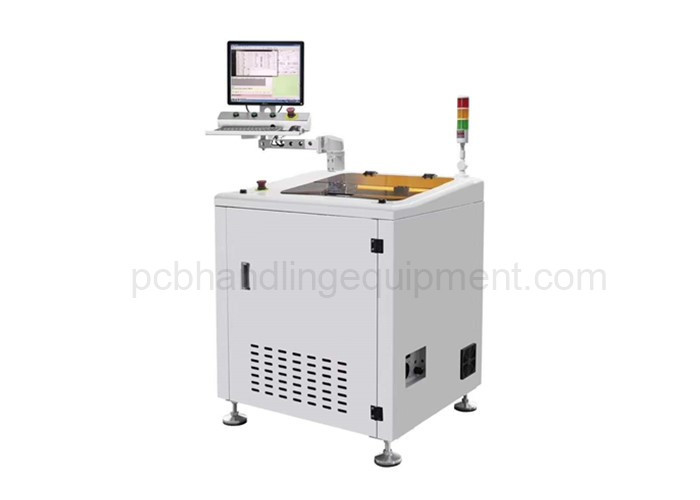

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine Images
|
