Blade Moving PCB Separator Auto Blade Moving PCB Depaneling Machine
Introduction:
A Blade Moving PCB Separator is a specialized machine used in the electronics manufacturing industry to separate printed circuit boards (PCBs) that are connected in panels after assembly
Features:
1, Max cutting length 600mm, or optional 400mm max length.
2, Circular blade and linear blade work together, circular blade moving separating.
3, Blade Moving 600mm Cutting Length V-cut PCB Separating Machine with Counter
4, The max cutting width is unlimited, single PCB best at 1~200mm.
5, The operation platform can be adjustment, based on the height of upper components of the PCB, standard machine the height is less than 32mm.
6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.
Specification:
| Model | HS-203 | HS-206 |
| Principle | Board insert to the V-slot,blade moving cutting |
| Blade | Bottom linear balde, upper circular blade |
| Voltage | AC110V/220V 50/60Hz |
| Blade size(circular blade) | ϕ125mm*30mm*3mm |
| Blade size(linear blade) | 420mm×65mm×6mm |
| Max cutting length | 5~400mm | 5~600mm |
| PCB thickness | 0.8~3mm |
| Separation speed | 300~500mm/second(adjustable) |
| Separation width | Best 1~200mm |
| Components height | ≤32mm( or customized) |
| Power | 60W |
| Machine dimension | 710x450x420mm | 900x450x420mm |
| Weight | 55kg | 75kg |
Product detail:
Applications
- Electronics Manufacturing: Commonly used in the production of consumer electronics, automotive components, and medical devices where PCB separation is required.
- Prototyping: Useful for separating small batches of PCB panels during the prototyping phase.
Advantages
- Efficiency: Automates the depaneling process, reducing manual labor and increasing throughput.
- Reduced Material Waste: Minimizes the risk of damaging components, leading to lower scrap rates.
- Flexibility: Capable of handling various panel sizes and configurations, making it versatile for different production needs.
|
|

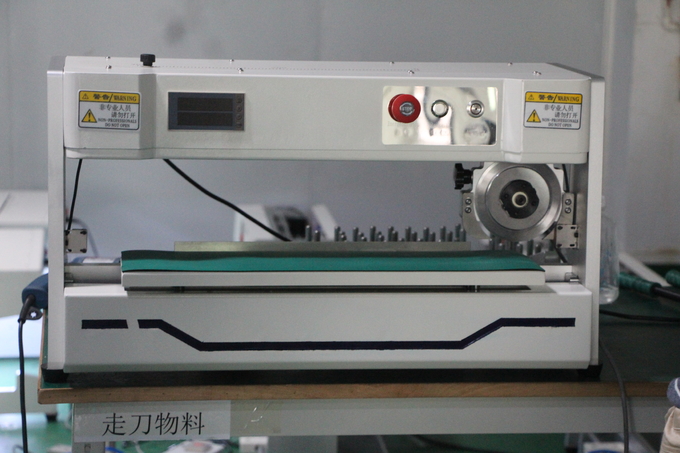

Blade Moving PCB Separator Auto Blade Moving PCB Depaneling Machine Images
|
