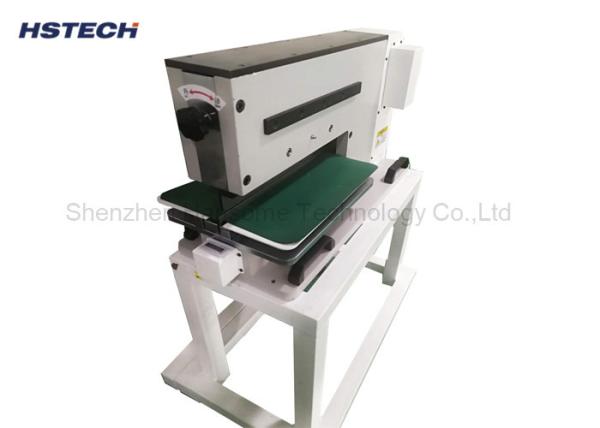

Ultra Low Force Stress at 500-600uE Low Force Stress PCB Depaneling Machine

Name: Ultra Low Force Stress at 500600uE Low Force Stress PCB Depaneling Machine
Brand: HSTECH
Price: 1 USD

Brand Name : HSTECH

Model Number : HS-310

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 7~9 work days

Packaging Details : Wooden package

Product Name : Low Force Stress PCB Depaneling Machine

Other Name : Pneumatic PCB Separator

Air Pressure : 0.5-0.8Mpa

Voltage : AC220V/110V

Pcb Thickness : 0.2 To 5.0mm

Pcb Length : 0 To 360mm

Contact Now

Ultra Low Force Stress at 500-600uE Low Force Stress PCB Depaneling Machine

Introduction:

This machine called pneumatic pcb separating machine, also called guillotine type PCB depaneling machine, it's using dual guillotine type blade as the cutting tool, at the same time powered by air pressure to finish the depaneling, it has much better performance than the blade moving pcb separator.

Features:

1, Suitable for all kinds of PCB boards with V-slot.

2, Guillotine type blade separating, ultra low force stress at 500-600uE, smooth and flat, no bent and glitch.
3, Penumatic and electricity driven combined.
4, Security: small guillotine only available for board feeding, ensure the safety of the operator.
5, Easy maintanance, operator can handling the machine with easy training.
6, Durable, using import high quality steel made cutting tool.

Specification:

Model	HS-310
Power	10W
Air supply	0.5~0.8Mpa
Efficient cutting length	1-360mm
Linear blade size	36043.56mm
Blade material	Import high quality high speed steel tool
Separating speed	1-300mm/s
V-cut thickness	0.3-3.5mm
Air consumption	200-400(L/min)
Machine size	700325400mm
Weight	130kg
Suitable board	All V-cut boards
