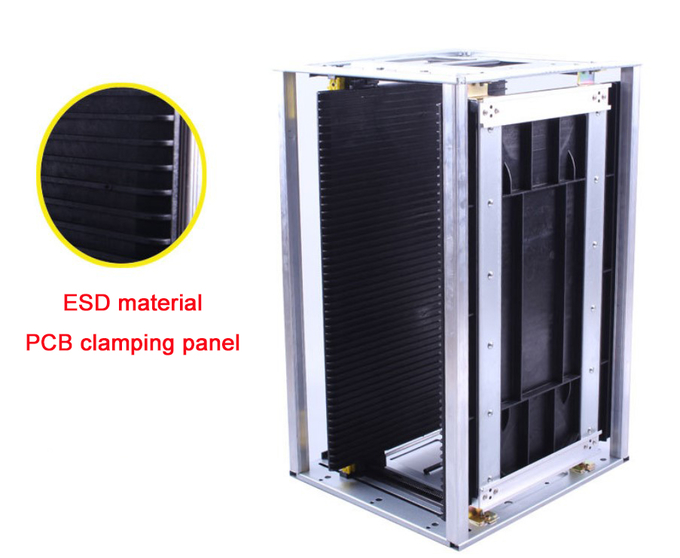

Anti-Static Durable Metal PCB Storage Magazine Max 50pcs For Collecting The PCBS
Introduce
PCB Storage Magazine is a device used to store and protect printed circuit boards (PCBs). It provides a safe, organized and manageable way to store and transport PCBs to prevent damage, contamination or other unwanted effects.
PCB storage magazines usually have the following features and functions:
1.Construction and size: PCB storage magazines are usually made of reliable materials (such as conductive plastic or anti-static materials) and have suitable size and construction. They usually feature a stackable design, allowing multiple magazines to be stacked conveniently, saving space and increasing storage density.
2.SAFETY PROTECTION: PCB storage magazines provide a physical barrier and protection to prevent PCBs from being damaged or contaminated during storage and transportation. They are usually shock-resistant and can reduce the impact of vibration and shock on the PCB. In addition, some storage magazines also provide anti-static protection to prevent damage to the PCB from electrostatic discharge.
3.Capacity and Adaptability: PCB storage magazines can hold multiple PCBs and their capacity varies based on magazine size and design. They usually have adjustable PCB supports to accommodate PCBs of different sizes and thicknesses. Additionally, storage magazines may offer a variety of PCB positioning and fixtures to ensure PCBs remain stable during storage and transportation.
4.Identification and management: PCB storage magazines often have identification slots or labels that can be used to mark stored PCB information, such as PCB type, batch number, or other identifying information. This helps manage and track stored PCBs, improving the efficiency and accuracy of material management.
Specification
| Overal size | 355*320*565mm,also has other options |
| Suitable PCB size | 50*50~350*250mm |
| PCB storage capacity | Max 50pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 105Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 5kg |
Features
1, This product is used for PCB loader machine, collect the PCBs and transport to the production line.
2, Top and bottom part using drable metal material panel, ensure the whole structure stable.
3, The whold rack is anti-static design, max can store 50pcs PCBs.
4, Width can be adjusted via gear and fixed by the clip.
5, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
6, Stable structure, wont bent during operation, the racks also high temperature resistance.
7, Easy to install and disassembly, convenient for replacement and maintenance.
About Packaging
|
|
