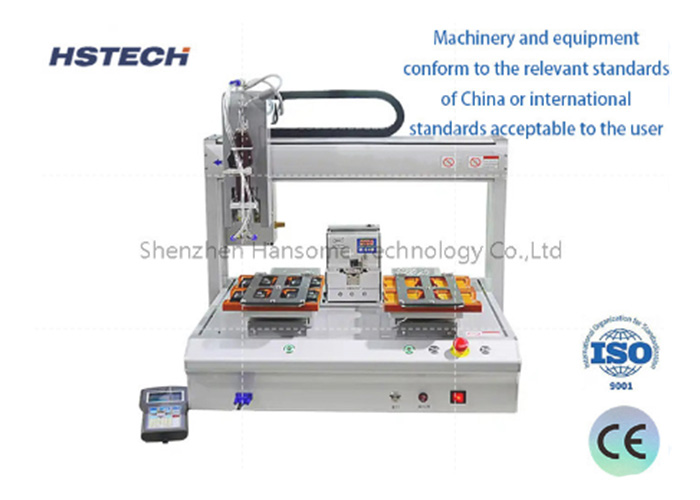

Desktop Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line

Name: Desktop Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line
Brand: HSTECH
Price: 1 USD

Desktop Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line Manufactures

Brand Name : HSTECH

Model Number : HS-SL551S

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100pcs per month

Delivery Time : 7~9 work days

Packaging Details : Wooden package, foam inside

Product name : Desktop Screw Tightening Robot

Feeding : pick-up screw

Axis : 3 axis

Screws : M1-M6

Moving Range : 500*500*100mm

Material : Main Aluminum

Port : Shenzhen

Oem : Yes

Contact Now

High Speed Automatic Screw Fastening Robot | Omron Photoelectric Switch | 600*600*100mm | 50/60Hz

Introduction

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.Suction feeding for faster, more efficient operation.
2.Desktop visibility and compatibility with automated production lines.
3.Movement range options: 500500100mm or 600600100mm.
4.Multi-screw bin support in suction mode.
5.Versatile for screw locking, dispensing, welding, testing, handling, and assembly.
6.Multiple axis and dual platform configurations available.
7.Features include regional array replication, platform replication, batch editing, and single-step operation.
8.Offline operation possible after downloading action parameters via serial port or saving in handheld box for easy recall.
9.Stores hundreds of processing files, each supporting 1000 screw bits, for on-demand use.

About Product

Desktop Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line

About Detail

Desktop Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line

About Packaging

Desktop Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line Images
