Convenient Hand-Operated Width-Adjustable Circuit Bboard Conveyor for 50*50-500*390mm Circuit Boards

Shenzhen Hansome Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

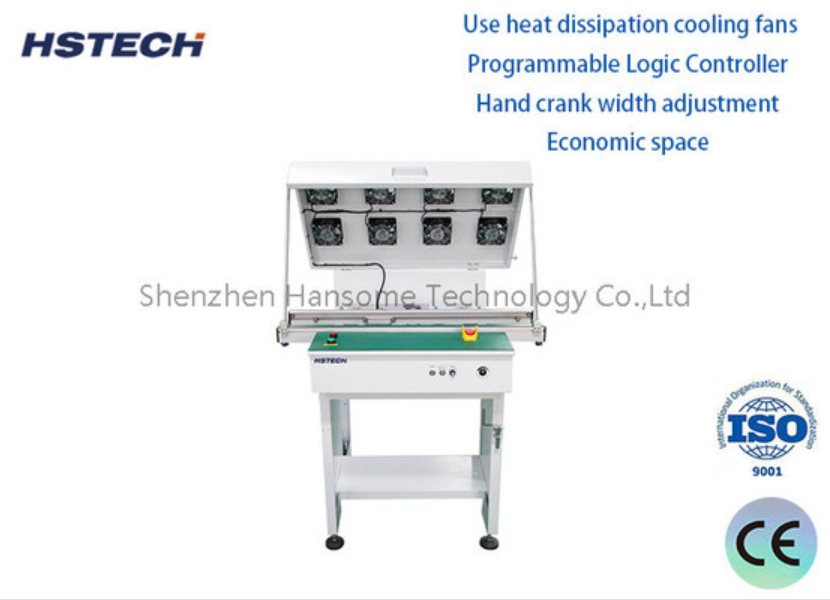

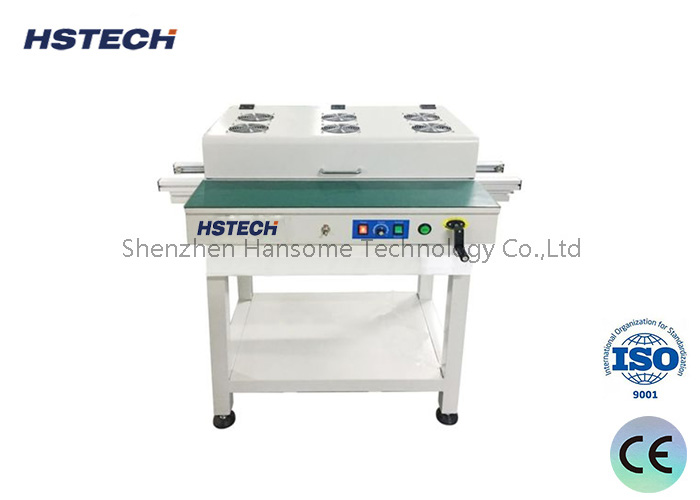

Convenient Hand-Operated Width-Adjustable Circuit Bboard Conveyor for 50*50-500*390mm Circuit Boards

  • 1
  • 2

Brand Name : HSTECH

Model Number : HS-C600

Certification : CE

Place of Origin : China

MOQ : 3 sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P

Supply Ability : 500 pcs per month

Delivery Time : 10~14 days

Packaging Details : Wooden box

Product name : SMT Conveyor

Other name : Link Conveyor

Transporting length : 600 mm

Transport belt : ESD flat belt

Belt thickness : 1.0 mm

Voltage : 1P AC 110V/220V 50/60HZ

Warranty : 1 Year

Packing : Wrap, wooden box

Contact Now

Convenient Hand Crank Width Adjustment PCB Handling Equipment for 50*50-500*390mm PCBs

Features

1. Sturdy and durable: adopts stainless steel body with stable thickness to ensure long-lasting durability of the equipment.
2. Strong adaptability: support the maximum width of 390mm PCB board, and equipped with manual adjustment mechanism, easy to adapt to different board width.
3. Flexible speed regulation: easily adjust the transfer speed through the knob to meet different production needs.
4. Anti-static design: The green worktable is made of anti-static material to ensure the safe transmission of electronic components.
5. Smooth transmission: Aluminium alloy transmission track ensures smooth and jitter-free transmission of PCB boards.
6. Intelligent control: LED button control system combined with speed regulating motor to achieve accurate speed control.
7. Rich additional functions: Provide optional functions such as tower light, inspection, dust cover, etc. to meet the diversified needs of customers.
8. Individual customisation: We accept individual customisation from customers to ensure that the equipment fully meets your production needs.
9. Flexible length options: equipment lengths are optional, including 600 mm, 1000 mm, 1500 mm, or customised according to requirements.
10. Convenient online connection: Support SMEMA signal, which is convenient for the equipment to connect with other production lines online and improve production efficiency.

Specification

Model HS-C600/HS-C600S
Power Supply AC220V or AC110V 50/60Hz
PCB Size 50*50~500*390mm
Width adjustment Hand crank
PCB Direction Left to right or right to left
Transmission Height 900 ± 20 mm
Transmission Speed 0.5-20 meters per minute adjustable
Track fixed side front side fixed( or back side fixed for option)
Machine Length 0.5M/0.6M/0.8M/1M/1.5M
Options Light,Fan,Magnnifying,Cover,Inspection
Communication signal SMEMA
