Automated V-Cut Blade PCB Separator PCB Depaneling Equipment For All Types of Boards

  • 1
  • 2

Brand Name : HSTECH

Model Number : HS-300

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/P,T/T,Western Union,MoneyGram

Supply Ability : 200 sets per month

Delivery Time : 3-5 work days

Packaging Details : Wooden Case

Product Name : Blade Miving PCB Separator

Other Name : V-cut PCB Cutter Machine

Warranty : 1 Year

Usage : PCB Board,aluminum Board,Cut V-cut Pcb

Condition : New

Quality : Durable,high Rank

Contact Now

Automated V-Cut Blade PCB Separator PCB Depaneling Equipment For All Types of Boards
Introduction

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design, before cutting, put the v-groove onto the linear blade, the upper circular blade moving to finish separating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

High-precision cutting:

The V-shaped tool design can achieve precise and neat cutting lines.
The advanced CNC system ensures the accuracy of the cutting path.

High efficiency:

Automated operation greatly improves work efficiency and saves labor costs.
Supports batch processing, suitable for small and medium batch production.

Multi-material application:

Not only can it cut PCB boards, but also can cut a variety of materials such as plastics and metals.
Flexible tool selection meets the processing needs of different materials.

Safe and reliable:

The safety protection design is adopted to effectively avoid personal injury during operation.
Stable cutting performance and mechanical structure ensure long-term and efficient operation.

Easy to operate:

Simple and intuitive control interface, easy for operators to master.
Cutting parameters can be flexibly set according to actual needs.

Features
  • This machine can use for cutting all kinds of boards with v-slot.

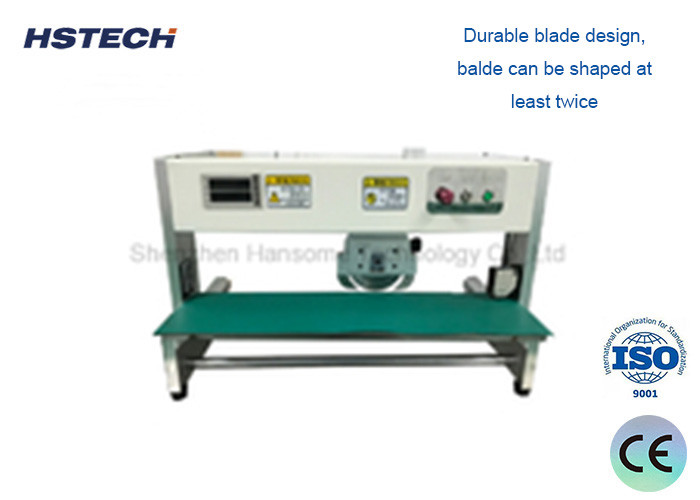

  • Durable blade design, blade can be shaped at least twice.
  • Circular blade height can be adjusted to fit the different kinds of PCB with different height components.
  • Blade moving operation, relative low force stress, single motor control the blade, easy and convenient operation.
  • With induction function, the machine will stop operation if the operator touch the space of blade moving.
  • Security, with double protective device, no need worry about the security production problem.
  • Durable, using high quality good material blade.
Specification
Model HS-300
Voltage 110V/220V(optional)
Power 100W
Efficient cutting length 5-360mm
Blade size Circular blade φ125*3mm, Linear blade 360*45*6mm
Blade material Import high quality high speed steel tool
Separating speed 300mm/s
V-cut thickness 1/3 of the board
Separating width Best 1-200mm
Machine size 620*320*450mm
Weight 50kg
PCB splitting equipment is mainly used in the following fields:
  • Electronic product manufacturing:

    Used to split multi-layer PCBs of mobile phones, tablets, electronic devices and other products.
    It can accurately control the size and position of the split board to improve the product qualification rate.

  • Industrial automation:

    Applied to the splitting of circuit boards for industrial control equipment, instruments and other products.
    Improve the automation level of production lines and shorten production cycles.

  • Consumer electronics:

    Widely used for PCB splitting of consumer electronics products such as laptops and digital cameras.
    Ensure the quality of splitting and reduce the rework rate.

  • Medical electronics:

    Applicable to the splitting of circuit boards with high precision requirements for medical equipment, diagnostic instruments, etc.
    Ensure that the splitting process will not cause circuit damage.

  • Aerospace field:

    Applied to PCB splitting with extremely high reliability requirements in fields such as avionics and aerospace equipment.
    Ensure the consistency and stability of the splitting.
