5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products

Name: 5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products
Brand: HSTECH
Price: 1 USD

5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products Manufactures

Brand Name : HSTECH

Model Number : HS-S5331R

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 pcs per month

Delivery Time : 7~10 work days

Packaging Details : Wooden package, with foam inside

Product name : Automatic soldering robot

Soldering head : Single

If rotation : Yes

Voltage : 220V/110V, optional

External communication : RS232

Work table : Dual

Programing : Teach Pandent

Contact Now

Single Double Y Platform Temperature Control 5 Axis Automatic Soldering Robot

Introduction

We call this soldering robot a 5 axis soldering machine, it based on a 4 axis soldering robot and plus a 360 degree rotation R axis, so it has larger soldering range.

Application

1, Semiconductor Products

2, optical products

3, Electronic Products

4, General home appliances

5, Precision Machines/Electrical Products

6, Large-scale mechanical products

7, General Consumer Goods

Features

5-axis soldering capability.
Stepper motor control for precision.
Advanced heating & broken tin management.
Hiwin Linear guide for smooth, flat movements.
Versatile soldering: spot, drag, & more.
Private aluminum alloy arm, stable & rust-resistant.
Pendant programming with 99 program storage.
Smoke filter system for longer iron life & better soldering.

Specification

Model	HS-S5331R
Power supply	Meanwell driver AC110V/220V
Air pressure	0.45-0.5Mpa
Axis	5
Moving range	X 500mm
	Y1 300mm
	Y2 300mm
	Z 100mm
	R 360degree
Moving speed	X/Y1/Y2 1-600mm/s
	Z 1-300mm/s
	R 1-100mm/s
Transport method	Linear guide
Repeat accuracy	±0.05mm
Platform load capacity	10kg
Z Axis load capacity	5kg
Y platform size	190*150mm
Heater power	150W
Edit mode	Handle panel
Program capacity	99
Communication port	RS232
Feeding	Single tin feeding system
Solder tin diameter	0.3-1.5mm
Machine dimension	720580645mm
Net Weight	65kg

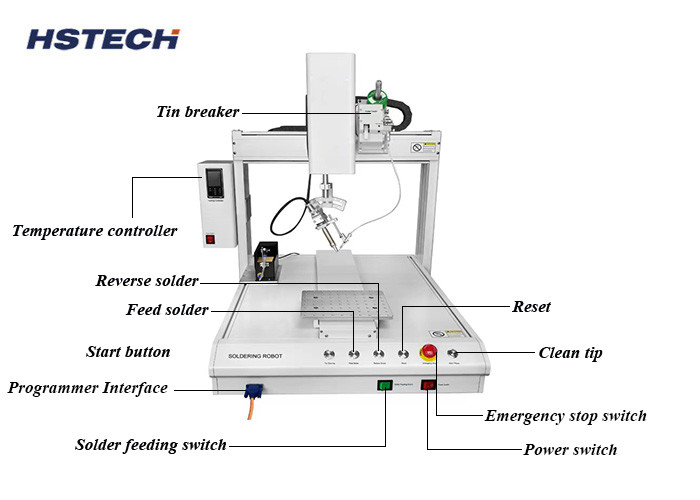

5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products

About Details

5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products

About Packaging

5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products Images
